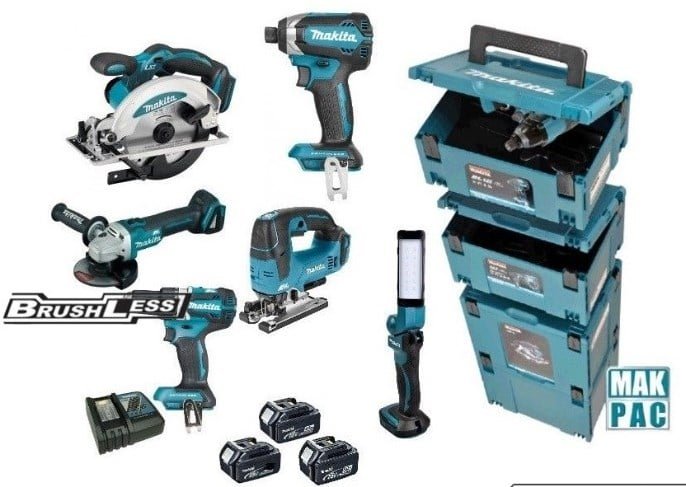

Makita DLX8100J | Combiset 18V | DDF484 + DTD153 + DGA504 + DHS660 + DJV182 | Incl. batteries and charger

Models DLX8100J

• DGA504Z – 18V 125MM ANGLE GRINDER
• DDF484Z – 18V CORDLESS DRILL
• DML801 – 14.4V/18V TORCH
• DHS660Z – 18V 165MM CIRCULAR SAW
• DTD153Z – 18V 1/4” CORDLESS IMPACT DRIVER
• DJV182Z – 18V CORDLESS JIGSAW

Special features of DLX8100J

DGA504Z

• Safer due to anti-restart function.
• Light signals warn the user against overloading.
• Suitable for all common 115 and 125 mm grinding discs.
• Longer disc lifespan due to 11,000 rpm.

DDF484Z

• High working comfort due to excellent machine balance.
• Extremely suitable for general drilling and screwing tasks.
• Two functions: drilling, screwing.
• Compact size and lightweight.
• Durable machine with protection against overload, overheating, and deep discharge of the battery.
• Better protected against dust and moisture due to unique design inside and outside the housing.

DML801

• Lithium-ion torch with 12 LED lights, with a rotating and foldable lamp head, lockable in 7 positions, including a carrying hook.
• Possible to use 6 LEDs as well.
• Maximum runtime: 22 hours (6 LEDs on, with BL1830) or 9 hours (12 LEDs on, with BL1830, BL1840, and BL1850).
• Also suitable for BL1430, BL1815, and BL1415.
• The Makita BML801 LED work light is compatible with 14.4V and 18V Li-ion batteries, both 1.3 and 3.0, 4.0, and 5.0 AH.

DHS660Z

• 165 mm circular saw with a bevel setting up to 45°.
• ½ kilo lighter due to lithium-ion battery technology. (Approx. 20% lighter than Ni-MH).
• Fast cutting with a clean cut due to a high speed of 3100 revolutions per minute.
• Ideal for stand and interior builders.
• Excellent weight/performance ratio.
• External dust extraction possible.

DTD153Z

• For a variety of screwing and assembly work (M4-M16).
• Handles more work thanks to the brushless motor.
• Particularly compact and very lightweight (1.5 kg).
• Maintenance-free brushless motor with electronic control provides a constant speed.
• Integrated dual LED lighting for more comfortable working in poorly lit areas.
• Better protected against dust and moisture ingress.

DJV182Z

• Equipped with an energy-efficient brushless motor.
• Efficient working in wood, metal, plastic, and rubber thanks to variable speed control (dial).
• Improved, durable dust extraction directly connectable to all Makita vacuum cleaners.
• Complete with constant electronics: cuts easier and provides a cleaner cut.
• Precise cutting results due to unique square blade design preventing the blade from twisting.
• Equipped with soft start for more precise starting at the cutting line.
• Features soft no load: speed increases as the saw comes into contact with the material.
• High working comfort due to excellent machine balance, lightweight, and ergonomic handle.
• Easy one-handed blade change: via click system and without tools.
• Optimal visibility and clean cutting line due to cooling air channels that blow away sawdust.
• Equipped with pendulum settings for fine to coarse finishing.
• Fitted with a Lock On / Lock Off button for continuous and extra safe working.

Technical specifications

DGA504Z

• Battery voltage 18 V
• Ampere 5.0 Ah
• Battery type Li-ion
• Charging time 45 min
• Disc diameter 115/125 max. mm
• Spindle lock yes
• No-load speed 11,000 min-1
• Vibration ah 8.5 m/s K 1.5 m/s
• Sound pressure level 75 dB(A)
• Weight (EPTA) 2.37 kg
• Dimensions lxbxh 317x129x126 mm
• Connection/mounting M14

DDF484Z

• Max. drilling in stone 13 mm
• Max. drilling in wood 38 mm
• Max. drilling in metal 13 mm
• Chuck 1.5 – 13 mm
• Torque settings 21
• Motor type brushless
• Variable speed control (switch) yes
• Reversible yes
• Number of mechanical speeds 2
• No-load speed (setting 1) 0 – 500 min-1
• No-load speed (setting 2) 0 – 2000 min-1
• Spindle lock yes
• Built-in lighting yes
• Soft grip yes
• Torque soft / hard 30 / 54 Nm
• Battery protection yes
• Chuck 1/2 – 20UNF
• Electric brake yes
• Weight 1.8 kg.

DHS660Z

• Battery voltage: 18 V
• Battery type: Li-ion
• Blade diameter: 165 mm
• Arbor hole: 20.0 mm
• Dust extraction preparation: Yes
• Motor brake: Yes
• Soft grip: Yes
• Spindle lock: Yes
• No-load speed: 3100 min-1

DTD153Z

• Battery voltage 18 V
• Ampere 4.0 Ah
• Battery type Li-ion
• Charging time 36 min
• Motor brake yes
• Variable electronic speed control yes
• Connection/mounting ¼ hex
• No-load speed H 0 – 3400 min-1
• Number of impacts H 0 – 3600 min-1
• Max. torque (setting 1) 170 Nm
• Screw metric thread (M) 4 – 8 mm
• Screw wood thread (length) 22 – 125 mm
• Dimensions lxbxh 126x79x238 mm
• Weight (EPTA) 1.5 kg

DJV182Z

• Max. cutting capacity wood 90° 135 mm
• Max. cutting capacity metal 90° 10 mm
• Max. cutting capacity aluminium 90° 20 mm
• Machine voltage 18 V
• Motor type BL-motor
• Dimensions lxbxh 266x77x208 mm
• Number of strokes 800 – 3500 min-1
• Stroke length 26 mm
• Pendulum settings 3
• Variable speed control (dial) yes
• Built-in lighting yes
• Soft grip yes
• Aluminium base yes
• Dust extraction preparation yes
• Vibration (K) wood cutting 1.5 m/s²
• Vibration ah metal cutting 3.5 m/s²
• Vibration (K) metal cutting 1.5 m/s²
• Sound pressure level (LpA) 77 dB(A)
• Sound pressure level (K) 3 dB(A)
• Deep discharge protection yes
• Compatible with BL1815N battery yes
• Compatible with BL1840 battery yes
• Weight with BL1815N battery (EPTA) 2.4 kg
• Weight with BL1840 battery (EPTA) 2.6 kg
• Tilting L/R 45 – 45 º
• Overload protection yes
• Soft start yes

Standard included

• 3 x 18V 5.0Ah Li-Ion Battery BL1850B
• 1 x Charger DC18RC
• 4 x Mbox
• Manual
