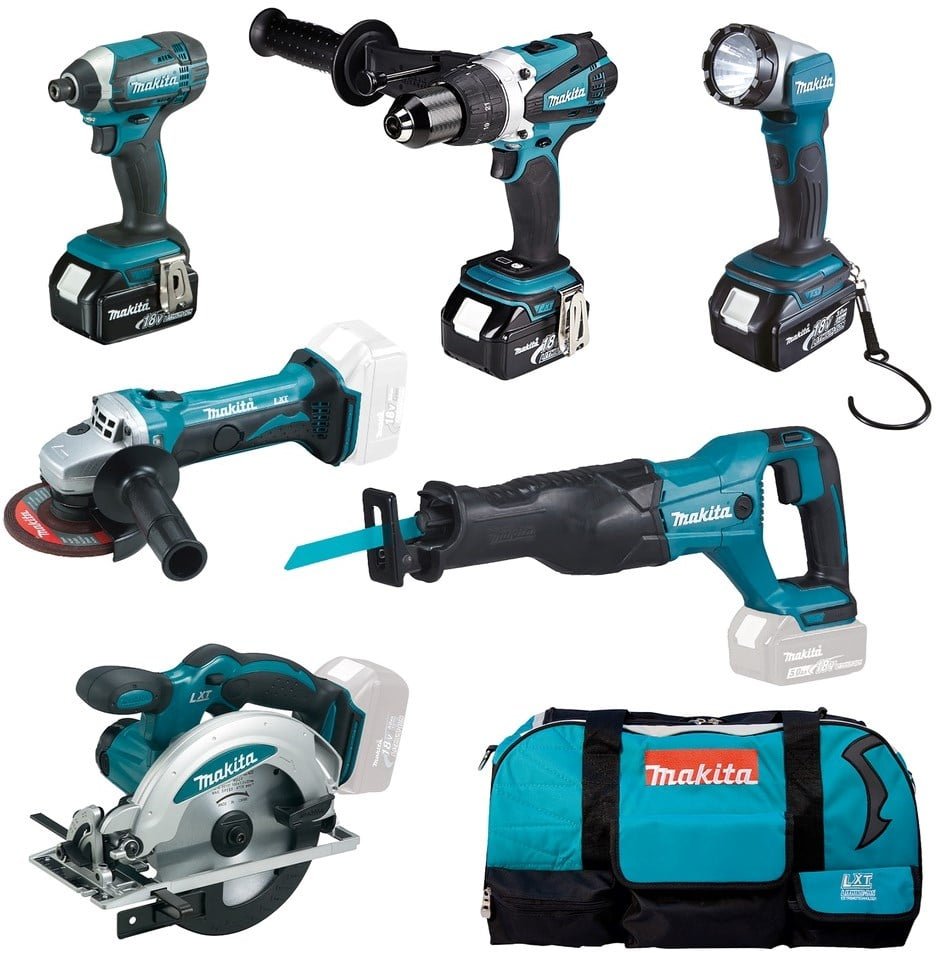

Makita DLX6046 – 6-piece Combo Set 18v Li-ion 3x 3.0Ah Batteries

Supplied with battery lamp DML802, charger, and 3 pieces of 3.0Ah batteries

Set consists of

• Battery Hammer Drill – DHP458
• Circular Saw – DSS610
• Reciprocating Saw – DJR186
• Impact Driver – DTD152
• Angle Grinder DGA452
• Light DML802
• 3x Battery – 3.0Ah Li-ion
• 1x Charger DC18RC

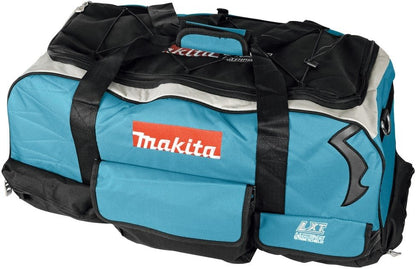

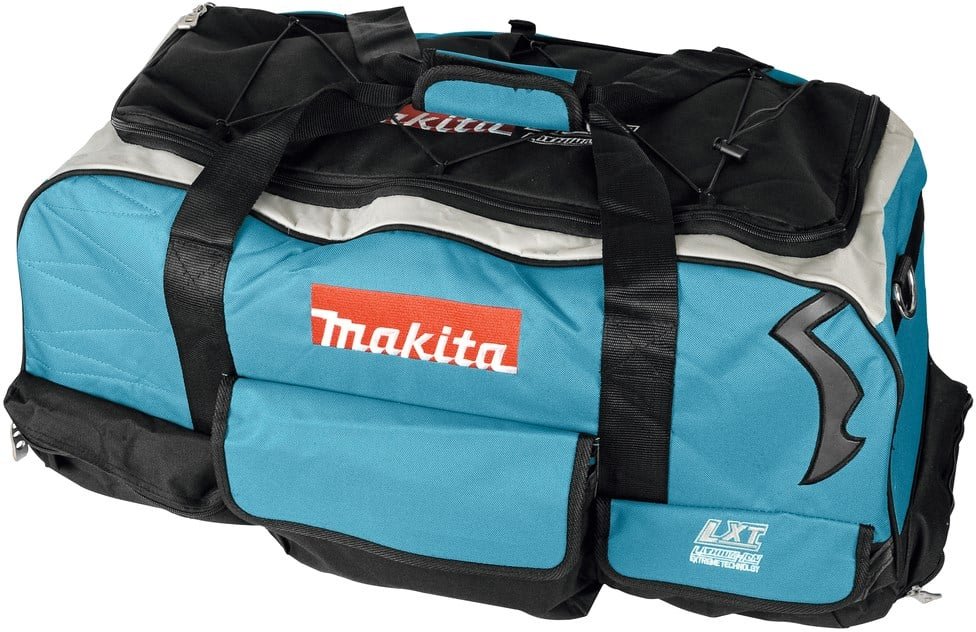

• 1x Toolbag

Features

DGA452Z

• Safer due to anti-restart function.
• Light signals warn the user against overloading.
• Suitable for all common 115 mm grinding discs.
• Longer service life of grinding disc due to 10,000 rpm.

DHP458Z

• Higher productivity due to new battery motor and increased speed (1,800 min-1) compared to its predecessor (BHP454RFX)
• 3 functions (drilling, hammer drilling, screwing), 2 speeds, soft tightening torque 43Nm, 2.2 kilograms
• Compact and lightweight due to 4-pole motor.
• Now 6 mm shorter than its predecessor. Adjustable slip clutch is set higher, allowing larger screws to sink better into wood.
• Equipped with the best possible ergonomic handle for more comfortable working.
• Fitted with two LEDs for screwing and drilling without shadow from the drill head.
• The improved dust and splash water protection ensures reliable operation, even in bad weather.

DJR186Z

• Sturdy, yet fast and robust battery reciprocating saw.
• Cuts smoothly and cleanly thanks to the new crank mechanism.
• Extra reinforced stop, easily adjustable without tools.
• Cuts faster due to the design of the new crank mechanism.
• Easy one-hand blade change: using click system and without tools.
• Better protected against the ingress of dust and moisture.

DML802

• Very modern torch with soft grip.
• Compatible with 14.4 and 18 Volt batteries
• Suitable for 3.0 AH, 4.0 AH, 5.0 AH Li-ion batteries

DSS610Z

• Light and handy machine with powerful sawing performance due to high speed.
• Left-mounted saw blade for excellent visibility of the cutting line when used by right-handed users.
• Targeted lighting on the cutting line.
• Two-stage switch to activate the lighting when the saw is stationary, with protection against unintended activation of the saw.
• Integrated blowing nozzle keeps the cutting line free of dust for better visibility.
• Set cutting depth can be read on the closed guard cover.

DTD152Z

• Specialist in heavy connections (M10 – M16).
• Compact, fast machine. Maximum 165 Nm strong.
• Durable machine due to protection against overload, overheating, and deep discharge of the battery.
• Uniquely designed for good protection against dust and moisture.
• With built-in dual lighting, which remains lit for 10-15 seconds after releasing the switch. This is handy for finding the next fastening in poorly lit areas.

Technical specifications

DGA452Z

• Battery voltage 18 V
• Diameter of grinding disc 115 max. mm
• Arbor hole 14.0 mm
• Spindle lock yes
• No-load speed 10000 min-1

DHP458Z

• Soft tightening torque 58 Nm
• Hard tightening torque 91 Nm
• Battery type Li-ion
• Chuck 1.5 – 13 mm
• Variable speed control (switch) yes
• Motor brake yes
• Number of mechanical speeds 2
• Number of adjustable tightening torques 21
• No-load speed L 0 – 400 min-1
• No-load speed H 0 – 2000 min-1
• Number of blows H 0 – 30000 min-1
• Drilling capacity in stone 16 mm
• Drilling capacity in wood 76 mm
• Drilling capacity in metal 13 mm
• Number of blows L 0 – 6000 min-1
• Battery charge indicator yes
• Aluminium gear housing yes
• Spindle lock yes
• Deep discharge protection yes
• Suitable for BL1830 and BL1840 batteries yes
• Built-in lighting yes
• Overload protection yes
• Soft grip yes
• Motor type 4-pole

DJR186Z

• Variable speed control (switch) yes
• Blade change without tools yes
• Stroke length 32 mm
• Sound pressure level (LpA) 84 dB(A)
• Dimensions lxbxh 486x81x222 mm
• Max. cutting capacity wood 0° 255 mm
• Max. cutting capacity pipe/tube 0° 130 mm
• 1/2″ Universal shank yes
• Number of strokes (setting 1) 0 – 2800 min-1
• Battery protection yes
• Electric brake yes
• Sound pressure level (K) 3 dB(A)
• Blade length 70 – 450 mm
• Soft grip yes
• Motor type 2-pole
• Vibration (K) wood cutting 1.5 m/s²
• Vibration (K) chipboard cutting 1.5 m/s²
• Vibration ah wood cutting 12.5 m/s²
• Vibration ah chipboard cutting 13.0 m/s²
• Voltage (power) 18 V

DSS610Z

• Voltage 18 V
• Diameter of saw blade 165 mm
• Cutting capacity 90 0-57 mm 45 0-40 mm 50 0-36 mm
• No-load speed 3700 rpm
• Net weight 3.2 kg

DTD152Z

• Machine voltage 18 V
• Motor type 4-pole
• Connection/socket 1/4″ hex
• Variable speed control (switch) yes
• Rotating left and right yes
• Built-in lighting yes
• No-load speed (setting 1) 0 – 2900 min-1
• Number of strokes (setting 1) 0 – 3500 min-1
• Max. torque (setting 1) 165 Nm
• Screwing metric thread (M) 4 – 8 mm
• Screwing with wood thread (length) 22 – 125 mm
• Type electric motor FD31-10
• Soft grip yes
• Dimensions lxbxh 137x79x238 mm
• Sound pressure level (LpA) 93 dB(A)
• Sound pressure level (K) 3 dB(A)
• Weight with BL1815 battery 1.3 kg
• Weight with BL1815N battery 1.3 kg
• Weight with BL1830 battery 1.5 kg
• Weight with BL1840 battery 1.5 kg
• Vibration ah fastening up to max. 10.5 m/s²
• Vibration (K) fastening up to max. 1.5 m/s²
• Battery protection yes
• High tensile strength bolt (M) 5 – 12 mm
• Electric brake yes
• Weight with BL1850B battery 1.5 kg
• Standard bolt (M) 5 – 16 mm

Delivery scope

• 3 x 18V 3.0Ah Li-Ion Batteries
• Fast charger DC18RC
• Sturdy Makita Bag
• Above-mentioned machines
