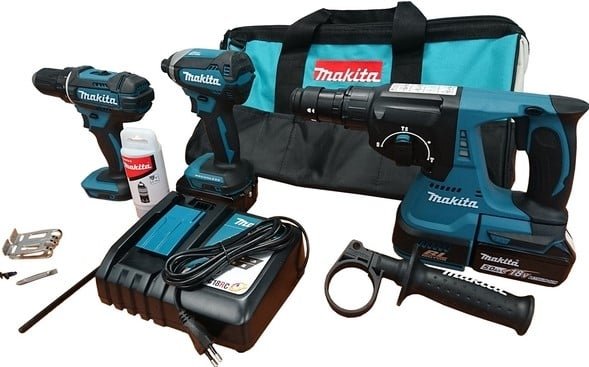

Makita DLX3089T Combiset – DHP482 Hammer Drill + DTD153 Impact Driver + DHR243 Rotary Hammer 18v

Makita DLX3089T Combiset – DHP482 Hammer Drill + DTD153 Impact Driver + DHR243 Rotary Hammer 18v 5.0 Ah Battery (2 pcs) in Bag

• Set includes two machines in a bag:
• DHP482: Extremely suitable for all-round drilling and screwing tasks.
• DHR243: Combination hammer ideal for holes up to 14 mm, but can go up to 24 mm in concrete, with an additional quick-release drill chuck.
• DTD153: Impact driver

Features of DHP482

• High working comfort due to excellent machine balance.
• Extremely suitable for all-round drilling and screwing tasks.
• Compact in size and lightweight.
• Durable machine due to overload, overheating, and deep discharge protection for the battery.
• Better protected against dust and moisture due to unique design on the inside and outside of the housing.

Technical Data of DHP482

• Chuck 1.5 – 13 mm
• Max. drilling capacity in wood 38 mm
• Max. drilling capacity in metal 13 mm
• Machine voltage 18 V
• Motor type 4-pole
• Dimensions lxbxh 198x79x249 mm
• Soft grip yes
• Spindle lock yes
• Variable speed control (switch) yes
• Built-in lighting yes
• Torque settings 21
• Number of mechanical speeds 2
• No-load speed (setting 1) 0 – 600 min-1
• No-load speed (setting 2) 0 – 1900 min-1
• Weight with BL1830 battery 1.7 kg
• Sound pressure level (LpA) 75 dB(A)
• Sound pressure level (K) 3 dB(A)
• Torque soft / hard 36 / 62 Nm
• Battery protection yes
• Chuck 1/2 – 20UNF
• Electric brake yes
• Weight with BL1850B battery 1.7 kg
• Reversible yes
• Vibration (K) drilling in metal 1.5 m/s²
• Vibration ah drilling in metal 2.5 m/s²

Special Features of DHR243

• Combination hammer with interchangeable drill chuck and dust box
• Ergonomic handle ensures a secure and comfortable grip in every operation
• Higher productivity than model BHR202 is achieved by minimising the efficient brushless DC motor and thereby reducing energy loss.
• Thanks to the unique construction, the transfer of vibrations is suppressed. This works better and prevents damage to the battery and electronics.

Technical Data of DHR243

• Voltage: 18 Volt
• Charging time: 35 min.
• Chuck/connection: SDS+
• Impact energy: 2.0 Joules
• No-load speed: 0 – 950 rpm
• No-load blows: 0 – 4700 bpm
• Max. drilling capacity (wood): 27 mm
• Max. drilling capacity (metal): 13 mm
• Max. drilling capacity (concrete): 24 mm
• Weight: 3300 grams

Features of DTD153

• For various screw and assembly work (M4-M16).
• Handles more work thanks to the brushless motor.
• Particularly compact and very lightweight (1.5 kg).
• Maintenance-free brushless motor with electronic control delivers a constant speed.
• Integrated dual LED lighting for more comfortable working in poorly lit areas.
• Better protected against the ingress of dust and moisture.

Technical Data of DTD153

• Voltage (voltage) 18 V
• Motor type BL-motor
• Connection/drive 1/4" hex
• Variable speed control (switch) yes
• Reversible yes
• Built-in lighting yes
• No-load speed (setting 1) 0 – 3400 min-1
• Number of blows (setting 1) 0 – 3600 min-1
• Max. torque (setting 1) 170 Nm
• Screw metric thread (M) 4 – 8 mm
• Screw wood thread (length) 22 – 125 mm
• Soft grip yes
• Dimensions lxbxh 126x79x238 mm
• Sound pressure level (LpA) 96 dB(A)
• Sound pressure level (K) 3 dB(A)
• Weight with BL1815N battery 1.3 kg
• Weight with BL1830 battery 1.5 kg
• Weight with BL1840 battery 1.5 kg
• Vibration ah fastening up to max. 13 m/s²
• Vibration (K) fastening up to max. 1.5 m/s²
• Battery protection yes
• Bolt with high tensile strength (M) 5 – 14 mm
• Electric brake yes
• Weight with BL1820 battery 1.3 kg
• Weight with BL1820B battery 1.3 kg
• Weight with BL1830B battery 1.5 kg
• Weight with BL1840B battery 1.5 kg
• Weight with BL1850 battery 1.5 kg
• Weight with BL1850B battery 1.5 kg
• Standard bolt (M) 5 – 16 mm

Standard Included

• Charger DC18RC 195584-2
• Battery BL1850B 18V 5.0Ah (2 pcs) 197280-8
• Quick-release chuck 1.5-13mm 194079-2
• Depth stop drill 324219-0
• Storage Bag "empty"
• Carrying hook 346317-0
